PRODUCT INTRODUCTION
1 It has perfect protection facilities such as short circuit, DC and high frequency overload. The specially designed linear limiter protection circuit system can automatically adjust the limiting power according to the operating status.
2 High-efficiency large-scale transformer, large-capacity electrolytic capacitor for filtering power supply, ensuring low distortion when the amplifier is fully loaded, and low-frequency is more powerful.
3 Unique low noise design
4 Excellent convection cooling system, the turbine inlet and outlet of the air inlet and outlet, to ensure the machine works stably for a long time.
5 Three working modes for selection-- parallel, and bridge.
Thông số kỹ thuật VT SOUND VX-2500

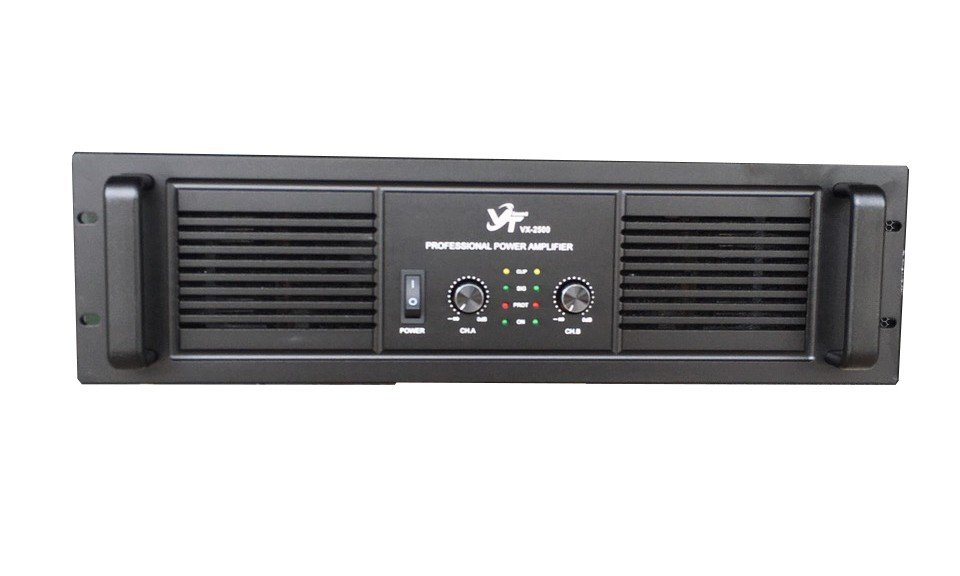

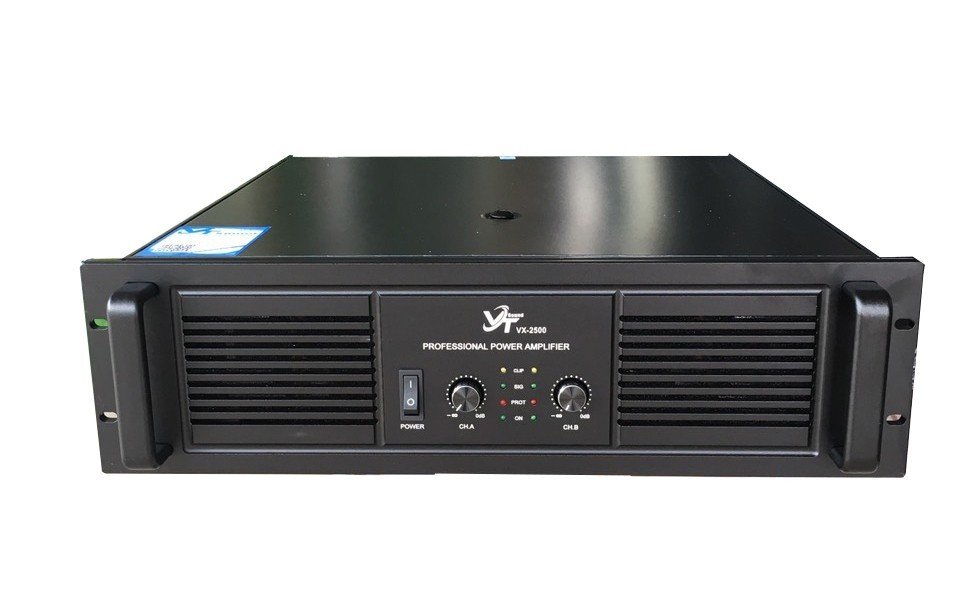

Product Model: VX-2500
8Ω (stereo): 2 X 2500W
4Ω (stereo): 2 X 2900W
2Ω (stereo): 2 X 4350W
8Ω (bridge): 5800W
Frequency response: 20Hz-20KHz; ±0.1dB
Total harmonic distortion: <0.01%
SNR: ≥105dB
Damping coefficient: ≥600
Input sensitivity: 0.775V, 1.4V
Input resistance: 20k/10k (balanced / unbalanced)
Line category: Class-TD
Input socket: Balanced input XLR Male& female
Output socket: Speaker socket
Power supply: ~220V-240V/50-60Hz
